YX88-115 Gutter Roll Forming Machine

Home Cold Roll Forming Machine Gutter Roll Forming Machine YX88-115 Gutter Roll Forming Machine | 0.4-0.6mm 550MPa

Features and Advantages of Gutter Roll Forming Machine

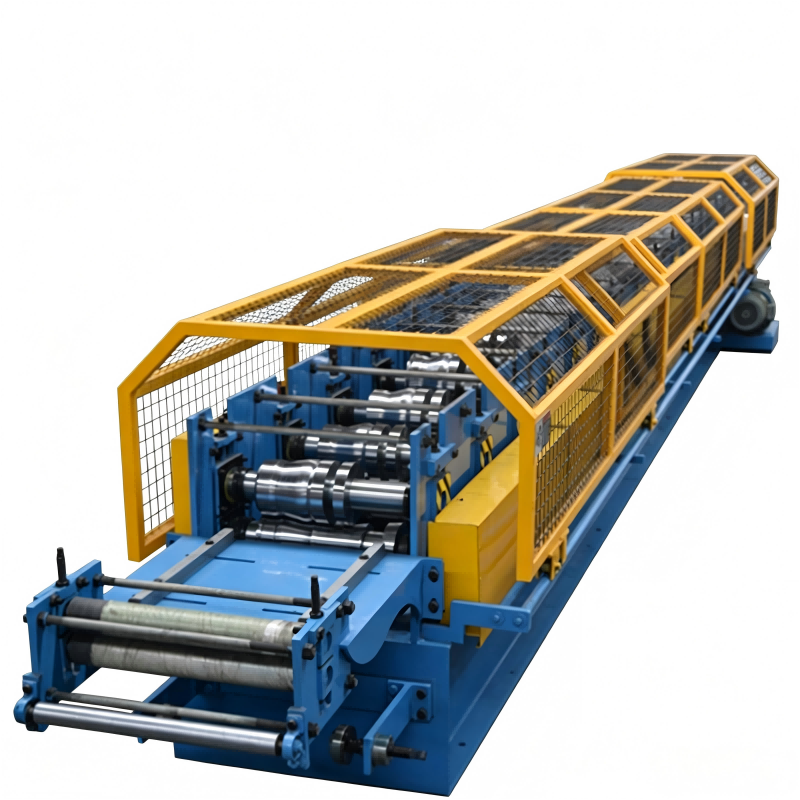

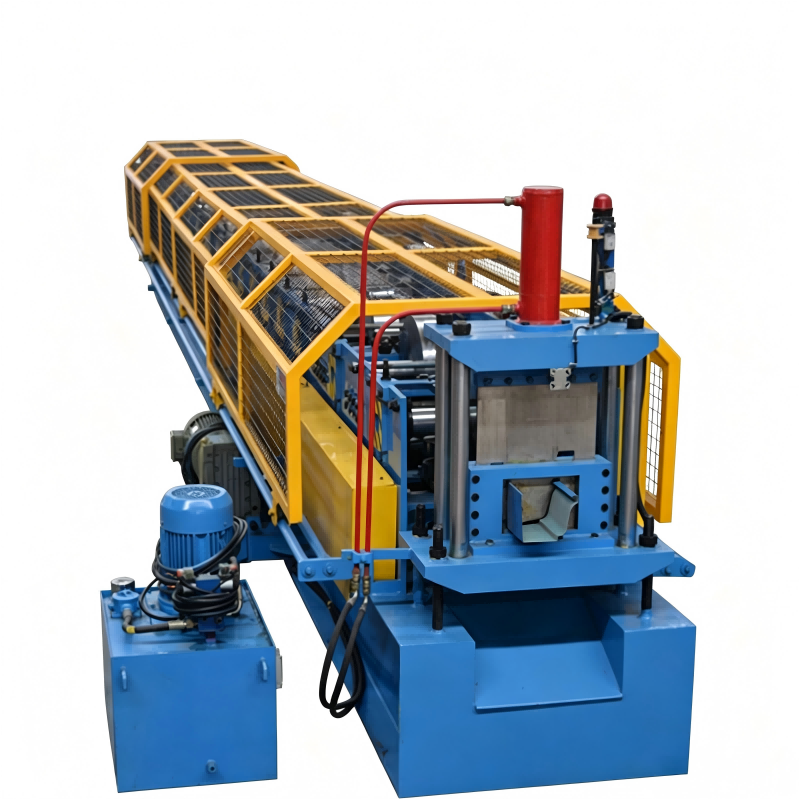

This roll forming machine produces YX88115 gutter profiles from 0.40.6mm 550MPa galvanized or colorcoated steel. The 3Ton hydraulic uncoiler feeds coils up to 600mm wide. Manual preshear with tail reminder cuts head/tail only. 18 forming stations with hard chrome rollers (Φ75mm shafts) ensure straight, consistent gutters. The overflow channel roller can be manually engaged or disengaged as needed. Hydraulic post cutting (Cr12MoV blades) delivers clean cuts. Siemens PLC with touch screen holds cut length to ±2mm. Full mesh safety cover included.

Main Parameters：Slitting Shearing Roll Forming Line
1 Machine Type	YX88115 Gutter Roll Forming Machine
2 Profile	YX88115 water gutter / rain gutter
3 Material	0.4 – 0.6mm galvanized/colorcoated steel, 550MPa
4 Feeding Width	278mm
5 Uncoiler	3Ton hydraulic, max 600mm, ID 451530mm, max OD 1500mm, 1.5KW pump, passive drive
6 Forming Passes	18 stations
7 Roller Material	45# steel, heat treated, hard chrome coated
8 Shaft Diameter	Φ75mm
9 Overflow Channel	Side embossing roller, manual on/off adjustment
10 Main Motor	7.5KW VFD
11 Max Speed	15 m/min
12 Preshear	Manual, unpowered, tail reminder, cuts head/tail only (max 0.8mm)

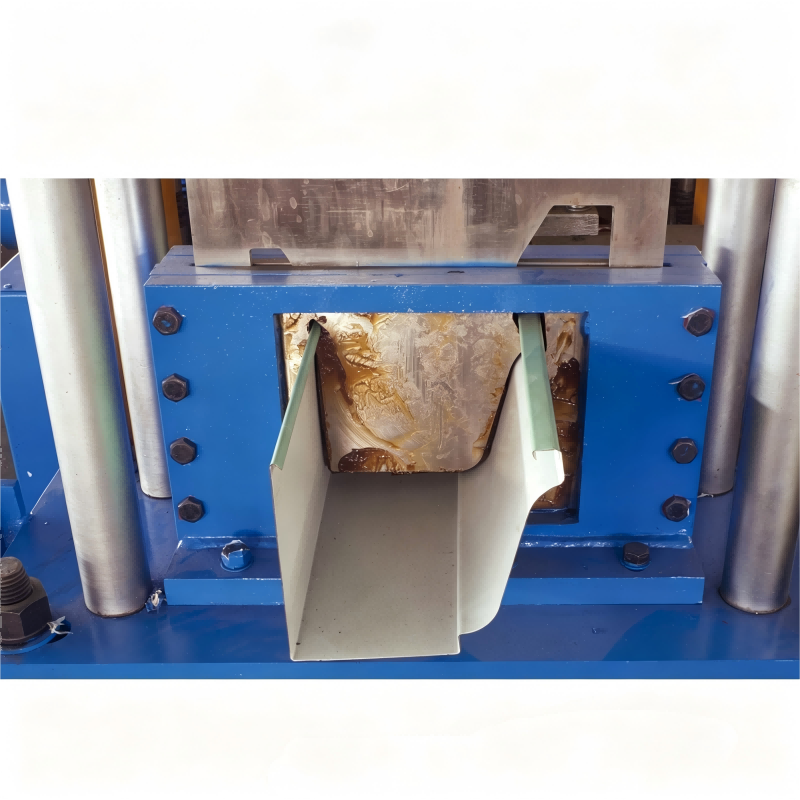

13 Cutting	Hydraulic post cut (stoptocut, with scrap), Cr12MoV blades, 4KW hydraulic station
14 Tolerance	≤ ±2 mm
15 Control	Siemens PLC + touch screen, Schneider inverter, Omron encoder, 24V
16 Safety	Pushpull mesh cover + blade safety guard
17 Product Rack	Unpowered, 6m length
18 Voltage	415V/50Hz/3PH (customizable)
19 Warranty	12 months (mechanical parts)

The Working Process of Roof Panel Roll Forming Machine

This series of roof panel roll forming machine wll go through the following working procedures: Coil Charging Car (optional)-Decoiler (passive/auto)- Front Shear(optiona)-Feeding and Guiding Table - Filming Covering (optiona)-Roll FormingSystem-Post-Cutting to length (Hydraulic/Motor)- Output Manual Supporter/Stackmaster(optional)

From Consultation to Delivery Standardized Workflow

01

Design Process

140+ Patents
02

Machining

145CNC Machines
03

Assembly

Craftsman Assembly
04

Commissioning

CE Standard
05

Trial Run

Practical Trial Production
06

Inspection

20-Step Quality Inspectic
07

Logistics

100+Countries
08

Customer Acceptance

On-Site Engineer Support
09

After-sales Service

24/7 Support

Core components are made in-house

This series of the profile is designed to be economical wall cladding for residential, industrial, and commercial projects.

Frame

Adopt high-strength H-beam from large standard steel mills.
Use 100% new material, no recycled or second-hand steel.
With stress relief treatment to avoid deformation during long-term use.
Surface painted with anti-corrosion and anti-rust coating for longer service life. Stable structure, low vibration, ensuring machine runs smoothly and safely.
Shaft

Made of high-quality 45# solid steel.
Processed by precision CNC machining for high accuracy.
High strength, not easy to bend or break.
Ensures stable running and long service life of the whole machine.
Rollers

Made of forged material with better toughness and strength.
Treated with professional heat treatment to improve hardness and wear resistance. Machined with high precision for stable forming effect.
Wear-resistant, long service life, low maintenance cost.
Side Plate

Made of high-quality steel plate with high strength.
Processed by advanced cutting and drilling equipment.
Precision machining ensures good matching and stable assembly.
Stable structure, strong load-bearing capacity.
Column

Adopt shot blasting derusting before painting.
High anti-corrosion and anti-rust performance.
Stable structure, strong durability.
Ensures the stability and safety of the whole equipment.
Shaft Sleeve

Precision CNC machining for high matching accuracy.
Good wear resistance and stable performance.
Reduces noise and extends the service life of transmission parts.
