C Crossbeam Roll Forming Machine

Home C Crossbeam Roll Forming Machine | C100*50 2mm 245MPa

Features and Advantages of C Crossbeam Roll Forming Machine

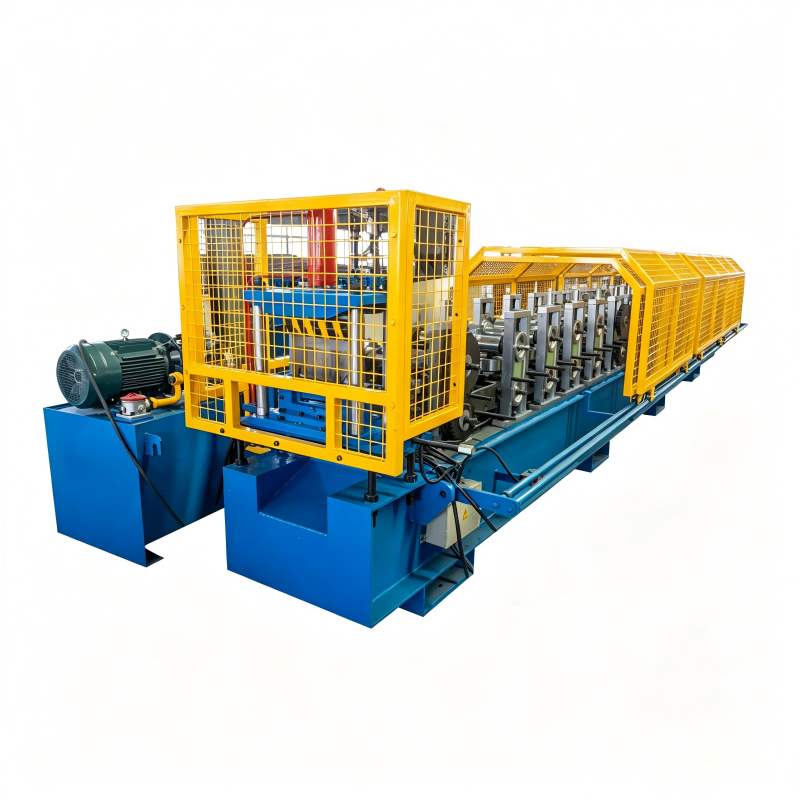

This roll forming machine produces C100*50 crossbeam profiles from 2mm 245MPa galvanized steel. Pre-leveling with 4-over-3 shafts ensures flat strip entry. 18 main forming stations with GCr15 hardened rollers and Φ75mm shafts deliver precise beam shapes. A second 3-station interlocking section joins two pieces together. Manual uncoiler feeds coils up to 600mm wide. Hydraulic post cutting with slug breaker (Cr12 blades) ensures clean cuts. Siemens PLC with touch screen holds cut length to ±2mm. Full mesh safety cover included.

Main Parameters：C Crossbeam Roll Forming Machine
1 Machine Type	C100*50 Crossbeam Roll Forming Machine

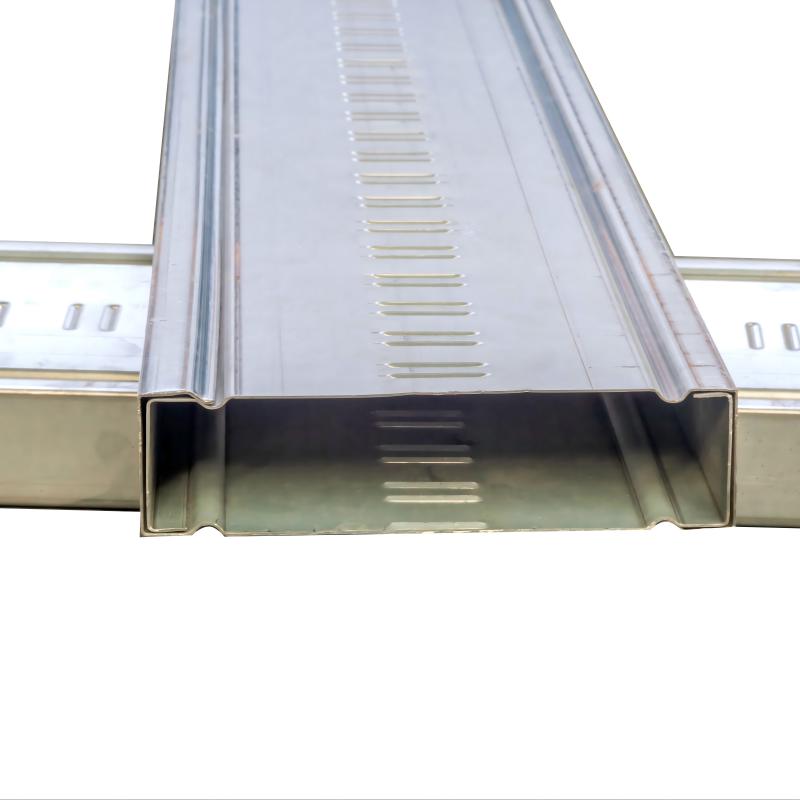

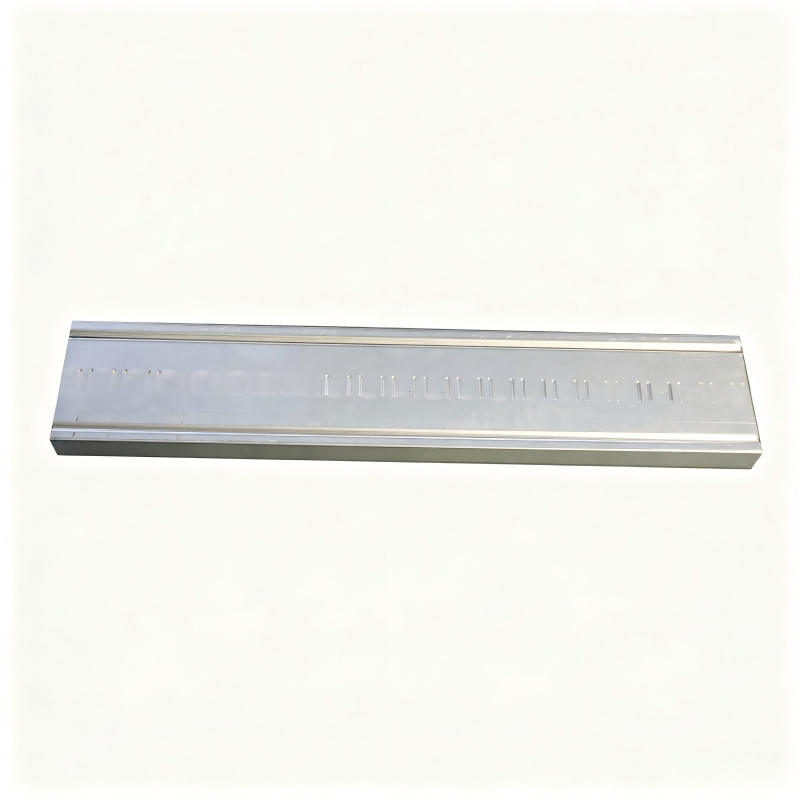

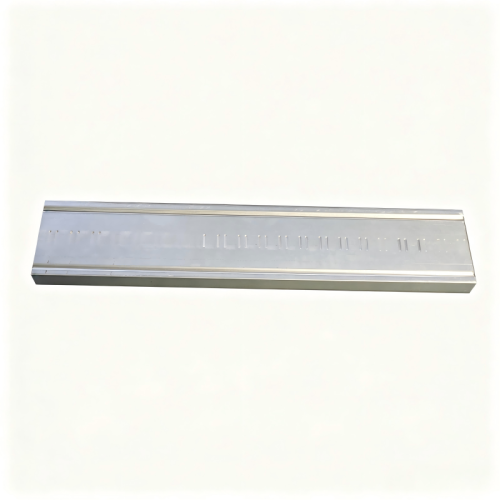

2 Profile	C-shaped crossbeam / side beam
3 Material	2mm galvanized steel, 245MPa
4 Uncoiler	5Ton manual, max 600mm, ID 470-510mm
5 Pre-Leveling	4over-3 shafts, removes coil-set

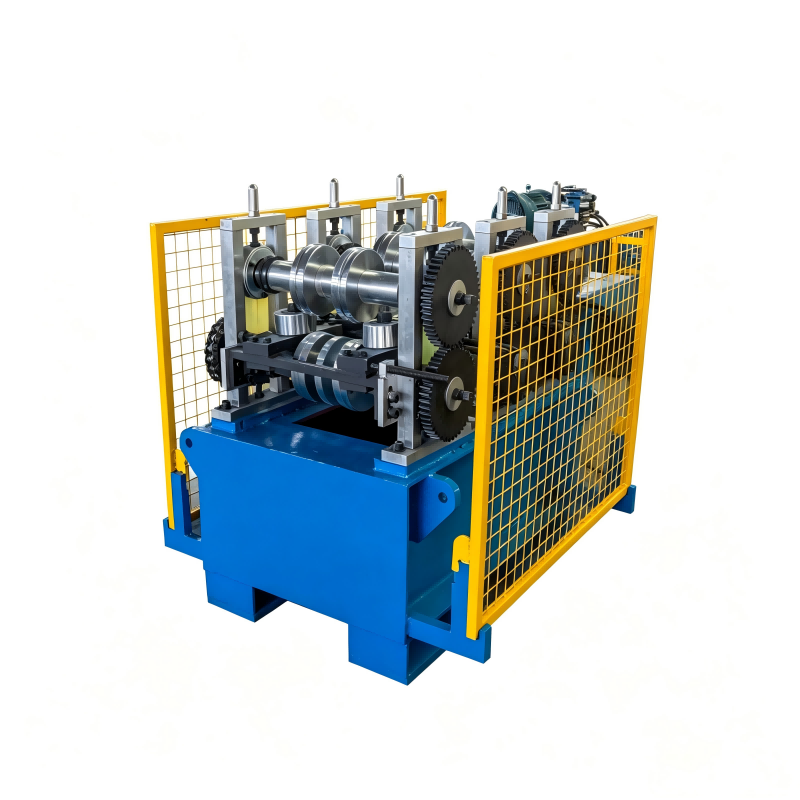

6 Forming Section 1	18 stations (GCr15 rollers, Φ75mm shafts, 11KW motor)

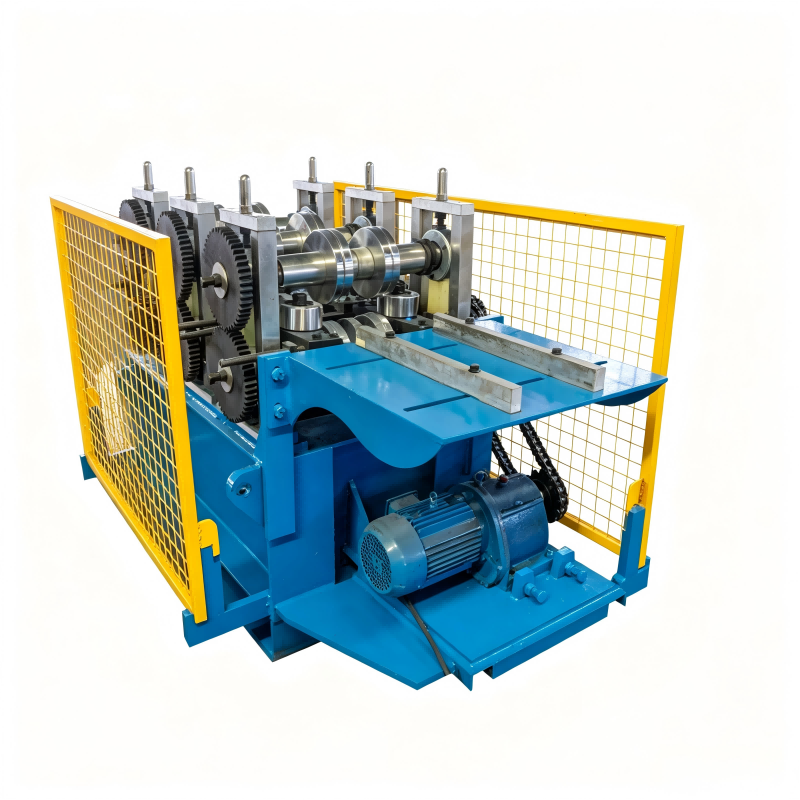

7 Interlocking Section	3 stations (4KW motor), joins two pieces
8 Forming Speed	10-12 m/min
9 Cutting	Hydraulic post cut (slug breaker), Cr12 blades, 7.5KW hydraulic station
10 Tolerance	≤ ±2 mm
11 Control	Siemens PLC + touch screen, Schneider inverter, Omron encoder, 24V
12 Safety	Full mesh cover
13 Price (FOB Xiamen)	USD 38,000.00
14 Delivery	90 days after advance payment
15 Container	40GP × 1 (estimated)
16 Warranty	12 months (mechanical parts)

The Working Process of Roof Panel Roll Forming Machine

This series of roof panel roll forming machine wll go through the following working procedures: Coil Charging Car (optional)-Decoiler (passive/auto)- Front Shear(optiona)-Feeding and Guiding Table - Filming Covering (optiona)-Roll FormingSystem-Post-Cutting to length (Hydraulic/Motor)- Output Manual Supporter/Stackmaster(optional)
