LGS Steel Framing Roll Forming Machine: Complete Machine Guide
Xiamen Zhengliming Machinery has been a trusted lgs machine manufacturer since 1989. As an experienced china lgs machine factory, we specialize in developing and manufacturing high-precision cold roll forming lines for C, Z and U profiles.
Our lgs framing roll forming machine and lgs steel forming machine deliver reliable performance for residential, commercial and industrial construction projects across the globe. Every lgs machine system we build supports full compatibility with Vertex BD software, enabling seamless workflows from design to finished production. If you are sourcing proven advanced lgs machine solutions, feel free to request your free, customized lgs machine price quotation.
Core Components of a Light Steel Framing Machine
A light steel framing machine — also widely known as an lgs machine — transforms steel coils into standard C, Z and U structural profiles through continuous cold roll forming. Built for high precision and stable operation, our lgs machines suit a broad range of construction applications:
Residential Construction: Roof trusses, wall frames and floor systems for buildings up to 6 stories high
Public Buildings: Heavy-load structural frames for schools, hospitals and stadiums, including MPA300-type systems
Commercial Complexes: Custom-made profiles for curved ceilings and partition wall assemblies
Industrial Warehouses: Heavy-gauge C-profiles (1.0-2.0 mm) for primary structural support
Emergency Prefab Housing: High-speed forming lines for rapid-deploy disaster-relief building frames
Key Machine Components
Uncoiler and Leveling Unit This station unwinds raw steel coils and relieves internal material stress. It keeps feed stock flat and consistent for stable production of your lgs steel framing components.
Punching and Notching Station Heavy-duty precision dies create 3.5 mm-20 mm holes for bolt connections, cable routing and assembly joints. Punching accuracy holds at ≤±0.5 mm. Combined hydraulic-servo drive delivers steady force for the complete lgs machines system.
Roll Forming Main Unit Fitted with Cr12 alloy rollers (HRC58-62), this section gradually shapes flat steel strips into C, U and Z profiles. The heavy-duty H-beam main frame maintains stable running speeds for your lgs framing roll forming machine during long production runs.
Hydraulic Cut-to-Length System Automatic shearing cuts finished profiles to exact lengths. Cutting accuracy reaches ±2.0 mm, ensuring uniform dimensions for all lgs steel framing parts.
PLC HMI Control System Siemens PLC paired with a touch-screen human-machine interface lets operators adjust line speed, punching cycles and cutting lengths. Full-automated operation reduces manual labour and improves overall consistency for your lgs machine system.
Full Production Workflow: Uncoil → Level → Punch → Roll Form → Shear → Automatic Stacking
Working Principle & Material Compatibility
Forming Process
Steel strip feeds continuously through the production line. After leveling and stress removal, sequential roller sets bend the material into target profile shapes. Punching operations happen simultaneously. Completed profiles are cut to required lengths and stacked automatically. This well-proven workflow powers every advanced lgs machine built in our workshop.
Processing Thickness Range
Standard working range: 0.6 mm-1.2 mm
Custom heavy-duty option: up to 2.0 mm
Supported Raw Materials
Galvanized Steel: Excellent corrosion resistance for humid and outdoor working environments
Al-Mg Alloy Steel: Light-weight, high-strength material for premium prefabricated building projects
Pre-painted Steel: Decorative coated surface for ceiling and interior partition applications
As a professional lgs machine company, Xiamen Zhengliming configures equipment to match your real-world project requirements.

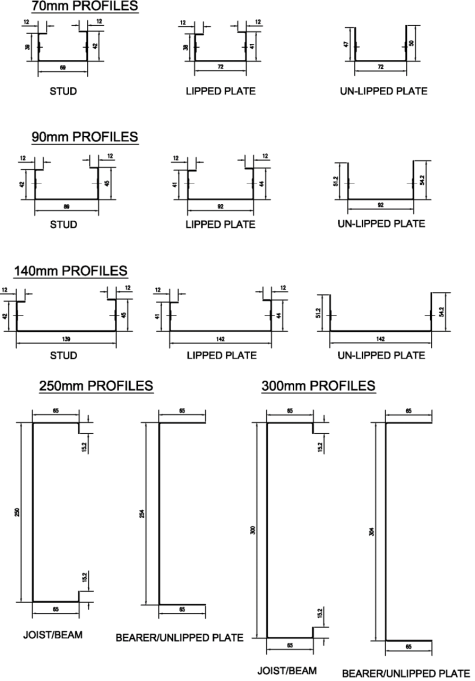

Popular Models & Technical Specifications
We supply three standard models to fit most construction scenarios. As a dedicated lgs machine factory, we also accept custom-built non-standard lines for special-purpose projects.
| Model | Typical Applications | Thickness Range | Core Benefits |
| 89 Series | Partition walls, indoor ceilings, small-scale prefabricated buildings | 0.6-0.8 mm | Cost-effective, compact footprint, ideal for small-to-medium building projects |
| 140 Series | Light-steel villas, residential housing, multi-story prefab structures | 0.8-1.0 mm | High load-bearing capacity, good seismic performance, stable for residential production |
| 300 Series | Industrial warehouses, large-span workshops, heavy-duty structural builds | 1.0-1.2 mm | Superior structural stability, purpose-built for large-span industrial construction |
Reach out to our engineering team for custom solutions if your lgs steel forming machine project requires special sizes, thickness or functional features.
Buyer-Focused Selection Guide
Below are practical equipment recommendations for buyers sourcing an lgs machine from China, based on your production goals and budget:
| Buyer Type | Recommended Solution | Key Reason |
| Construction Contractors | Fully-automatic PLC-controlled machine with integrated punching modules | Delivers reliable precision and high throughput for on-site engineering projects |
| Equipment Distributors | Standard 89 Series & 140 Series machines | Balances competitive pricing, stable quality and supply capacity for resale of lgs machine system |
| Light-Steel Component Manufacturers | Full-automatic production line with software-compatible interface | Streamlines end-to-end workflow, cuts labour input and raises total output using lgs framing roll forming machine |
Vertex BD Software Integration Advantages
Most conventional light-steel forming units only offer basic mechanical shaping functions. Our lgs steel framing machine connects seamlessly with Vertex BD prefabricated building design software. This creates a complete closed-loop workflow from digital design to physical profile production.
Core Software Capabilities
Automated Design: Generates 3D building models, accurate BOM lists and production-ready shop drawings for walls, floors and roofs
Direct Production Export: Outputs CAD/CAM data straight to roll forming equipment and removes errors caused by manual data conversion
Multi-format Compatibility: Supports IFC, DWG and PDF formats for smooth multi-party project collaboration
Real-World Operational Benefits
Speeds up design work by 20-30% and shortens overall project lead times
Precise BOM data reduces material waste and lowers total project expenditure
Widely adopted across global prefabricated construction for day-to-day lgs machine operations
Frequently Asked Questions
Q1: What are the differences between C, Z and U profiles produced by an lgs machine?
A1: C-profiles are standard channel sections, mainly used for wall frames and light structural supports. Z-profiles feature overlapping end flanges to carry continuous multi-span loads and are most often used for roof framing. U-profiles are simple non-stiffened channels, commonly used for bracing and secondary light-load components.
Q2: How do I pick suitable lgs machines for my light-steel building project?
A2: The 89 Series works well for partition walls and small prefabricated builds. The 140 Series is optimized for light-steel villas and residential housing. The 300 Series targets industrial warehouses and large-span structures. Contact our engineers for one-on-one guidance on lgs machine price and configuration options.
Q3: What materials can an lgs framing roll forming machine process?
Our lines process galvanized steel, aluminum-magnesium alloy steel and pre-painted steel. Standard thickness covers 0.6-1.2 mm. Custom heavy-duty versions can handle material up to 2.0 mm.
Q4: What is the production lead time for your lgs steel forming machine?
Standard machine lead time runs 45-60 working days. Custom light-steel-framing production lines require 60-90 working days. Send us your configuration requirements for an accurate delivery schedule.
Q5: What after-sales support do you offer as an lgs machine manufacturer for overseas customers?
A5: We provide full-lifecycle overseas support: on-site engineer installation guidance, operator training, 12-month warranty for core components and lifelong technical consultation, to guarantee stable production for global clients.
Conclusion
Selecting high-quality light-steel framing equipment paired with compatible design-software integration is critical to balance production efficiency, project cost and end-product quality. As a long-established china lgs machine company, Xiamen Zhengliming supplies stable, precise and cost-effective roll forming machinery for contractors, distributors and light-steel component manufacturers worldwide.
Take advantage of our advanced lgs machine technology to improve your productivity and competitive edge within the steel-construction sector.
Get Your Free Light-Steel Framing Machine Quotation
Contact Xiamen Zhengliming Machinery for custom technical solutions and factory-direct pricing for your lgs machine system.
Company Profile: Exporting to 96+ countries | 140+ proprietary patents | Founded in 1989
For over 30 years, Xiamen Zhengliming has remained a reliable lgs machine factory. Our automated C/Z/U profile roll-forming lines serve prefabricated construction projects globally, helping customers achieve high-precision, high-efficiency steel-frame manufacturing.
