Introduction: Core Role of Corrugated Roll Forming in Roof Systems
A corrugated roll forming machine produces high-performance metal roof and wall panels. These panels offer strong structural continuity, fast on-site installation, and long-term weather resistance.
By converting raw steel coils into standardized building enclosure systems, this metal roof panel equipment lowers lifecycle costs for architects, contractors, and building owners. It serves a wide range of metal roof and wall projects. You can view our full range of roof and panel roll forming equipment for more product lines.
A corrugated roof sheet roll forming machine uses continuous progressive forming technology. Precision-aligned forming stations shape metal coils into consistent, uniform cross-sections.
The machine series covers multiple configurations:
Industrial-grade roll forming machine lines for general panel production
Custom units for sinusoidal and trapezoidal corrugated profiles
High-speed metal roofing machine with servo flying shear, achieving ±0.5mm length accuracy
Single-layer roof panel forming machine for lightweight ribbed cladding
All variants reduce material waste, maintain repeatable tolerances, and shorten production cycles. These advantages cut material and labor costs for manufacturers and construction stakeholders.
I. Roll Forming Technology: Foundation of Precision Metal Processing
The corrugated sheet roll forming machine relies on mature cold-bending technology. It processes raw metal coils into finished corrugated panels.
Equipped with high-precision contour rollers, this metal roof forming machine stably processes prepainted steel, galvanized steel, Galvalume®, and stainless steel. Standard production speed ranges from 20 m/min to 35 m/min. Customized high-speed versions reach up to 45 m/min for large-volume orders.
Supported by intelligent PLC control and hydraulic synchronization, the roofing machine operates steadily even in humid environments. It ensures consistent panel quality and achieves a material utilization rate of over 95%. This makes it a cost-effective roof sheet making machine for modern metal roof projects.
II. Complete Production Process Flow (With Pre-Cut Pull Shear)
This automatic roll forming line features a complete, user-friendly workflow. It integrates front-end pull shearing and final servo flying cutting. New operators can master daily operation quickly without professional experience.
Coil Decoiling & Leveling: Unroll and straighten steel coils to eliminate bending and surface deformation.
Guided Feeding: Ensure stable metal feeding. An optional film laminator protects panel surfaces.
Pre-Cut Pull Shearing: Remove irregular coil head and tail materials before forming to guarantee uniform feeding conditions.

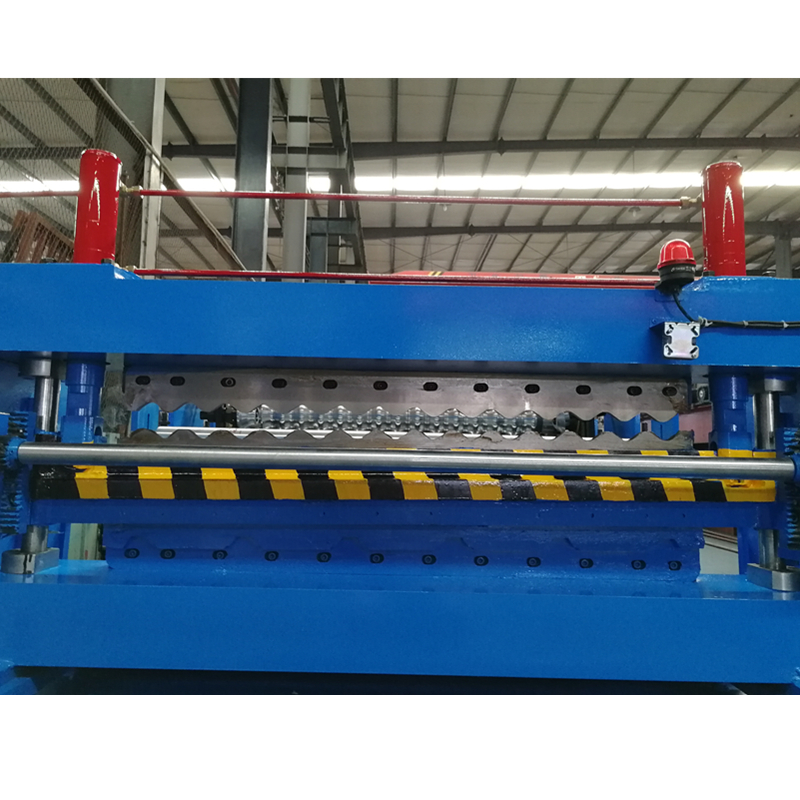

Progressive Roll Forming: Multi-group precision rollers bend metal step by step into standard corrugated cross-sections.
Hydraulic & Servo Flying Shear Cutting: Cut finished panels to customized fixed lengths with high precision after full profile forming.

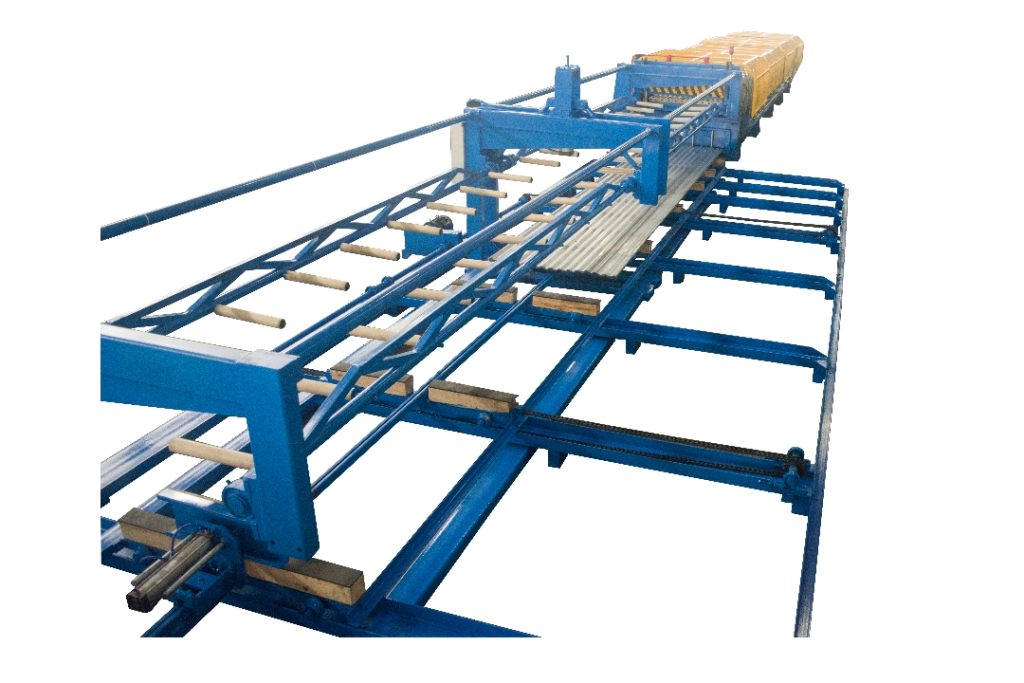

Finished Product Stacking: Automatically stack finished panels for easy packaging and transportation.
III. Technical Advantages & Core Parameters
This corrugated panel forming equipment strictly complies with international manufacturing standards. All technical parameters remain stable during long-term continuous operation.
Key Technical Parameters
| Parameter | Specification |
| Material Compatibility | Prepainted steel, galvanized steel, Galvalume® (thickness customizable) |
| Profile Tolerance | ±0.5mm (compliant with ASME Y14.5 standard) |
| Cutting Tolerance | ±0.5mm |
| Servo Motor Accuracy | ±1mm (closed-loop system); ±2mm (standard system) |
| Production Speed | 20 m/min standard (adjustable via Schneider inverter, max 45 m/min) |
| Motor Power | 5.5–15 kW (adjustable based on raw material thickness) |
IV. Core Components & Technical Highlights
The superior performance of this metal roll forming equipment comes from high-quality components and mature structural design.
Roller System: It uses forged 45# steel base rollers. They are heat-treated to HRC 58-60 and hard chrome plated. Mirror polishing (Ra≤0.1μm) controls wave depth tolerance within ±0.5mm. This ensures precise molding of metal roof panels.
Hydraulic Cutting System: It is equipped with Cr12MoV die steel blades. They are vacuum-quenched to HRC 58-60 hardness. This achieves high-precision cutting and extends the service life of wear parts.
Intelligent Control System: It matches Siemens-grade PLC and servo synchronization technology. This enables automatic length setting, intelligent speed regulation, and fault detection. It greatly enhances the operational reliability of the roof panel machine.
V. Application Scenarios & Project Value

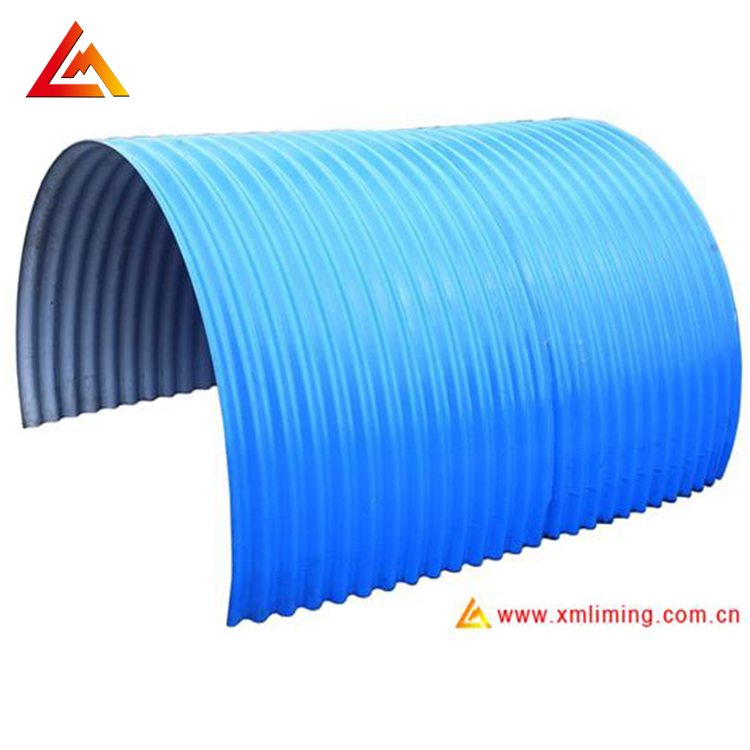

High-quality corrugated panels produced by this corrugated roofing machine feature strong weather resistance and structural stability. They are widely used in diverse construction projects.
Industrial & Commercial Buildings: Stadiums, exhibition centers, factories, and warehouses. 0.8mm galvanized panels fit large-span roof and wall enclosure systems.
Agricultural Buildings: Grain silo sidewalls and livestock sheds. Wind pressure resistance is up to 1.2 kPa, adapting to harsh outdoor environments.
Residential Buildings: Modern light steel houses, villas, and civil buildings. It is compatible with corrugated and other metal roof designs.
The machine supports customized corrugated profiles and meets green building standards. It provides long-term stable structural performance for all building envelope projects.
VI. Services & Technical Support
As a professional roll forming machine manufacturer, Xiamen Zheng Liming provides one-stop full-cycle services.
Warranty Service: 12-month full machine warranty and lifetime free technical support.
Customized Solutions: Professional CAD profile design and non-standard equipment customization.
Sales Support: We offer flexible configurations to match your production goals.
With high precision, high efficiency, and simple operation, this advanced metal roof roll forming machine is an ideal solution for modern metal roof and wall panel manufacturing.
Frequently Asked Questions
Q1: What is the difference between pre-cut pull shear and servo flying shear?
A1: Pre-cut pull shear works before forming to remove irregular coil heads and tails. Servo flying shear works after full forming to cut finished panels to fixed lengths.
Q2: What materials can this roll forming line process?
A2: It stably processes prepainted steel, galvanized steel, Galvalume® and stainless steel. Material thickness can be customized.
Q3: What is the maximum production speed?
A3: Standard speed is 20–35 m/min. High-speed configurations can reach up to 45 m/min with a Schneider inverter.
Q4: Can you customize the machine for special corrugated profiles?
A4: Yes. We provide professional CAD profile design and non-standard equipment customization based on your requirements.
