Floor Deck Roll Forming Machine

Home Floor Deck Roll Forming Machine | YX50-330-1000 0.7-1.2mm 550MPa

Features and Advantages of Floor Deck Roll Forming Machine

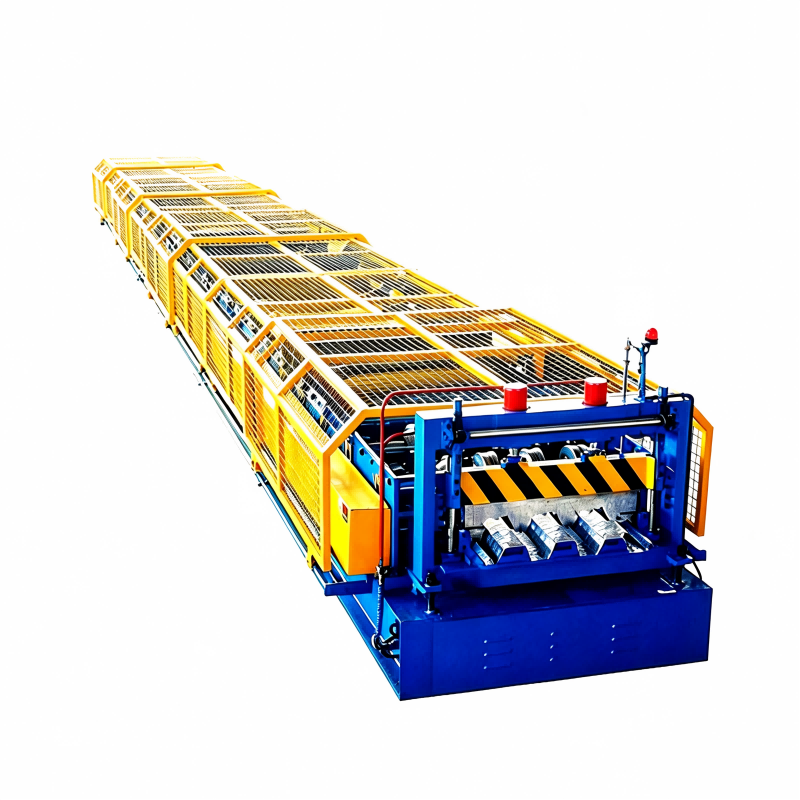

This heavy-duty roll forming machine produces YX50-330-1000 floor decking profiles from 0.7-1.2mm 550MPa galvanized steel. The 6Ton hydraulic uncoiler with photo-sensitive limit switch feeds coils smoothly. 26 forming stations with hard chrome rollers and Φ95mm shafts deliver precise, consistent deck profiles, including an inline embossing stage for enhanced concrete bond. Dual 18.5KW motors provide stable power at 18m/min. Hydraulic slug breaker cutting with Cr12MoV blades ensures clean cuts. Siemens PLC holds cut length to ±2mm.

Main Parameters：Floor Deck Roll Forming Machine
1 Machine Type	YX50-330-1000 Floor Deck Roll Forming Machine

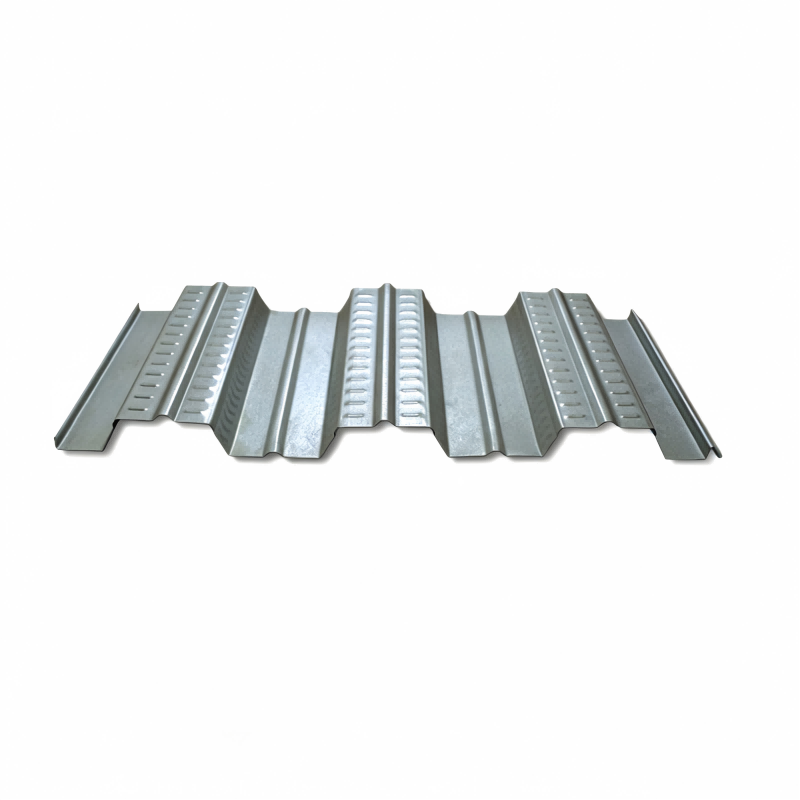

2 Profile	Floor decking / composite steel deck
3 Material	0.7 – 1.2mm galvanized steel, 550MPa
4 Effective Width	1000±5mm
5 Feeding Width	1220mm
6 Uncoiler	6Ton hydraulic (5+1T), max 1250mm, ID 510±30mm, 3KW pump + 3KW drive, photosensitive limit switch auto stop
7 Pre-shear	Hydraulic, manual control, cuts head/tail only (shared hydraulic)
8 Forming Passes	26 stations + inline embossing
9 Roller Material	45# steel, heat treated, hard chrome coated
10 Shaft Diameter	Φ95mm
11 Main Motor	18.5KW × 2 VFD
12 Max Speed	18 m/min
13 Cutting	Hydraulic post cut (stop-to-cut), slug breaker, Cr12MoV blades, 7.5KW hydraulic station
14 Tolerance	≤ ±2 mm
15 Control	Siemens PLC + touch screen, Schneider inverter, Omron encoder, 24V
16 Safety	Full mesh cover
17 Product Rack	Unpowered, 3 units
18 Voltage	Customizable (380V/50Hz or 480V/60Hz)
19 Warranty	12 months (mechanical parts)

The Working Process of Roof Panel Roll Forming Machine

This series of roof panel roll forming machine wll go through the following working procedures: Coil Charging Car (optional)-Decoiler (passive/auto)- Front Shear(optiona)-Feeding and Guiding Table - Filming Covering (optiona)-Roll FormingSystem-Post-Cutting to length (Hydraulic/Motor)- Output Manual Supporter/Stackmaster(optional)
