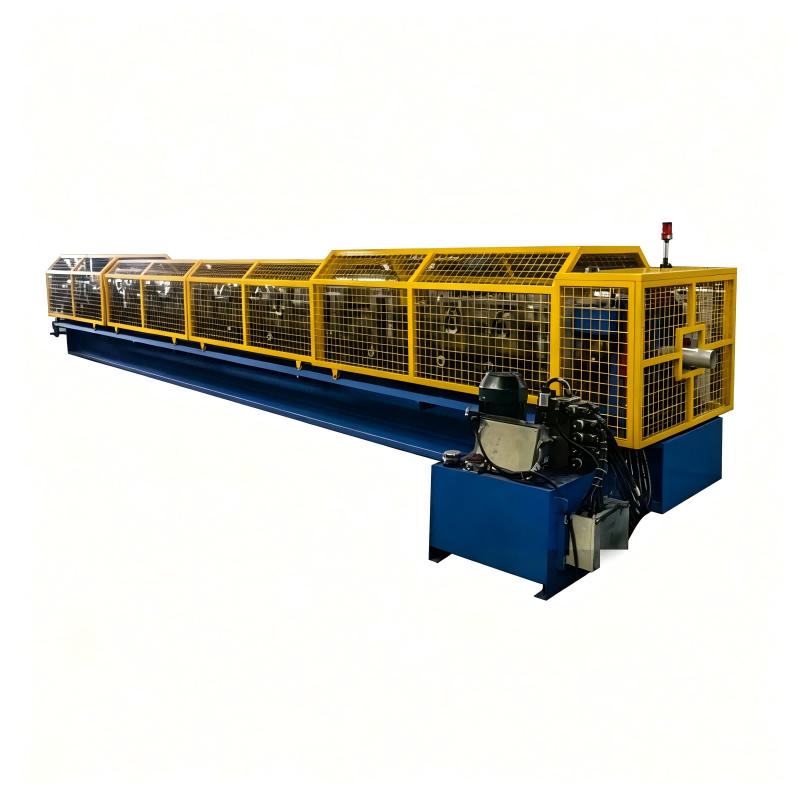

D91 Round Downspout Roll Forming Machine

Home Cold Roll Forming Machine Roof And Panel Roll Forming Machine D91 Round Downspout Roll Forming Machine | 0.4-0.7mm

Features and Advantages of Standing Seam Seaming Tools

This precision roll forming line produces D91 leakproof inner-lock round downspout from 0.4-0.7mm steel or aluminum coils. A 3Ton hydraulic uncoiler feeds coils up to 600mm width, matched with manual tail-reminder pre-shear to trim uneven strip ends. 15 forming stations with Φ75mm mirror hard chrome rollers deliver smooth pipe surfaces, plus a dedicated film applicator to protect aluminum against scratches. Cr12MoV hydraulic post cut-off with anti-drop lock creates scrap-free clean cuts, and high-end Siemens S7-1200 PLC stabilizes cutting length within ±2mm tolerance with full safety mesh cover.

Main Parameters：Standing Seam Seaming Tools
1 Machine Type	D91 Round Downspout Roll Forming Machine

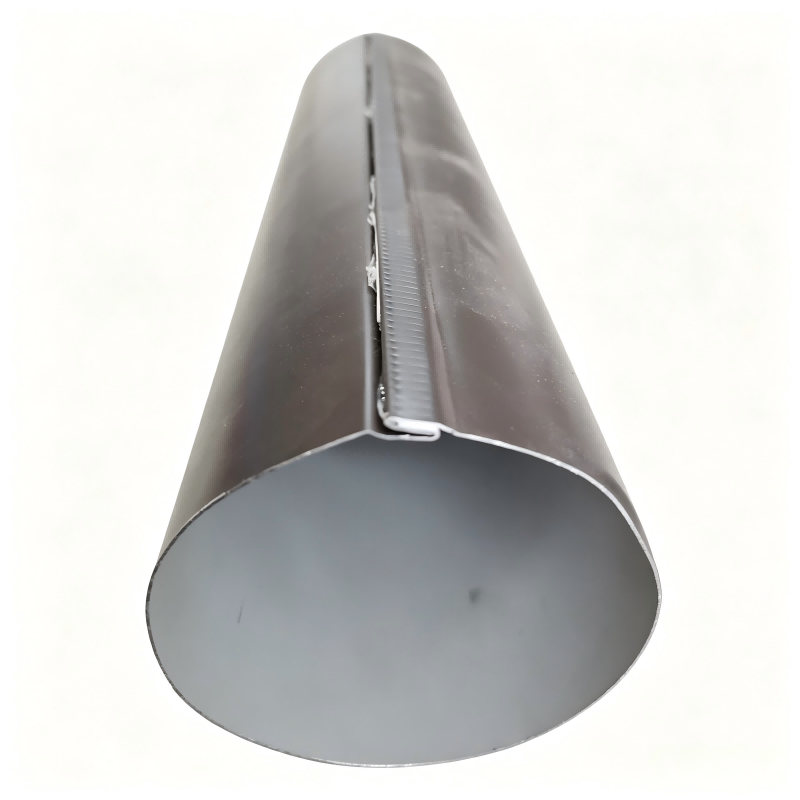

2 Profile	D91 round downspout, inner-lock type
3 Material	0.4 – 0.7mm steel / aluminum, 250MPa
4 Feeding Width	~302mm
5 Uncoiler	3Ton hydraulic, max 600mm, ID 451530mm, max OD 1500mm, 1.5KW pump, passive drive
6 Forming Passes	15 stations
7 Roller Material	45# steel, hard chrome coated (mirror finish)
8 Shaft Diameter	Φ75mm
9 Main Motor	7.5KW VFD
10 Max Speed	15 m/min
11 Film Applicator	Unpowered, rubber rollers (suitable for aluminum)
12 Preshear	Manual, unpowered, tail reminder, cuts head/tail only
13 Cutting	Hydraulic post cut-off (stoptocut, no scrap), Cr12MoV blades, spare blades included, 4KW hydraulic station with antidrop cylinder lock
14 Tolerance	≤ ±2 mm
15 Control	Siemens S71200 PLC + touch screen, Schneider inverter, Omron encoder, 24V, no password protection
16 Safety	Pushpull mesh cover + blade safety guard
17 Product Rack	Unpowered roller type, 4m length
18 Voltage	Customizable (380V/50Hz or 480V/60Hz)
19 Warranty	12 months (mechanical parts)

The Working Process of Roof Panel Roll Forming Machine

This series of roof panel roll forming machine wll go through the following working procedures: Coil Charging Car (optional)-Decoiler (passive/auto)- Front Shear(optiona)-Feeding and Guiding Table - Filming Covering (optiona)-Roll FormingSystem-Post-Cutting to length (Hydraulic/Motor)- Output Manual Supporter/Stackmaster(optional)

From Consultation to Delivery Standardized Workflow

01

Design Process

140+ Patents
02

Machining

145CNC Machines
03

Assembly

Craftsman Assembly
04

Commissioning

CE Standard
05

Trial Run

Practical Trial Production
06

Inspection

20-Step Quality Inspectic
07

Logistics

100+Countries
08

Customer Acceptance

On-Site Engineer Support
09

After-sales Service

24/7 Support

Core components are made in-house

This series of the profile is designed to be economical wall cladding for residential, industrial, and commercial projects.

Frame

Adopt high-strength H-beam from large standard steel mills.
Use 100% new material, no recycled or second-hand steel.
With stress relief treatment to avoid deformation during long-term use.
Surface painted with anti-corrosion and anti-rust coating for longer service life. Stable structure, low vibration, ensuring machine runs smoothly and safely.
Shaft

Made of high-quality 45# solid steel.
Processed by precision CNC machining for high accuracy.
High strength, not easy to bend or break.
Ensures stable running and long service life of the whole machine.
Rollers

Made of forged material with better toughness and strength.
Treated with professional heat treatment to improve hardness and wear resistance. Machined with high precision for stable forming effect.
Wear-resistant, long service life, low maintenance cost.
Side Plate

Made of high-quality steel plate with high strength.
Processed by advanced cutting and drilling equipment.
Precision machining ensures good matching and stable assembly.
Stable structure, strong load-bearing capacity.
Column

Adopt shot blasting derusting before painting.
High anti-corrosion and anti-rust performance.
Stable structure, strong durability.
Ensures the stability and safety of the whole equipment.
Shaft Sleeve

Precision CNC machining for high matching accuracy.
Good wear resistance and stable performance.
Reduces noise and extends the service life of transmission parts.
