Door Guide Rail Roll Forming Machine

Home Cold Roll Forming Machine Door Frame Making Machine Door Guide Rail Roll Forming Machine | YX35-72 1.0mm 350MPa

Features and Advantages of Door Guide Rail Roll Forming Machine

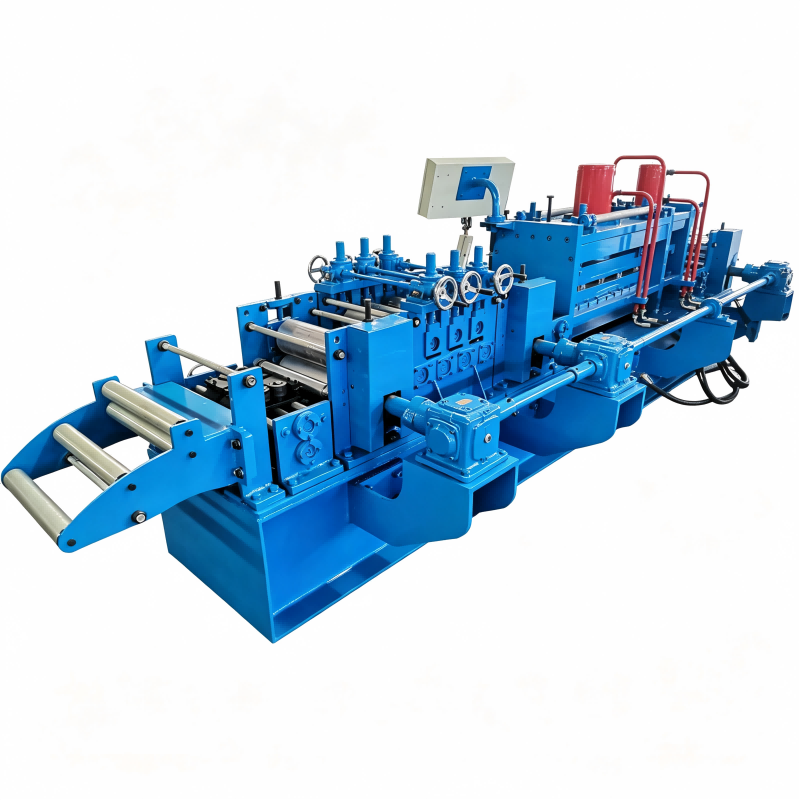

This complete roll forming line produces YX35-72 door guide rail profiles from 1.0mm 350MPa galvanized steel. Powered uncoiler feeds coils smoothly. 5-roll pre-leveling ensures flat strip entry. Two pre-punching stations create 8×22 slots inline with scrap collection. 18 forming stations with hard chrome rollers and Φ75mm shafts deliver precise profiles. The anti-twist device prevents warping. Hydraulic post cutting with Cr12MoV blades ensures clean cuts. Siemens PLC with closed-loop control holds cut length to ±1mm.

Main Parameters：Door Guide Rail Roll Forming Machine
1 Machine Type	YX35-72 Door Guide Rail Roll Forming Machine

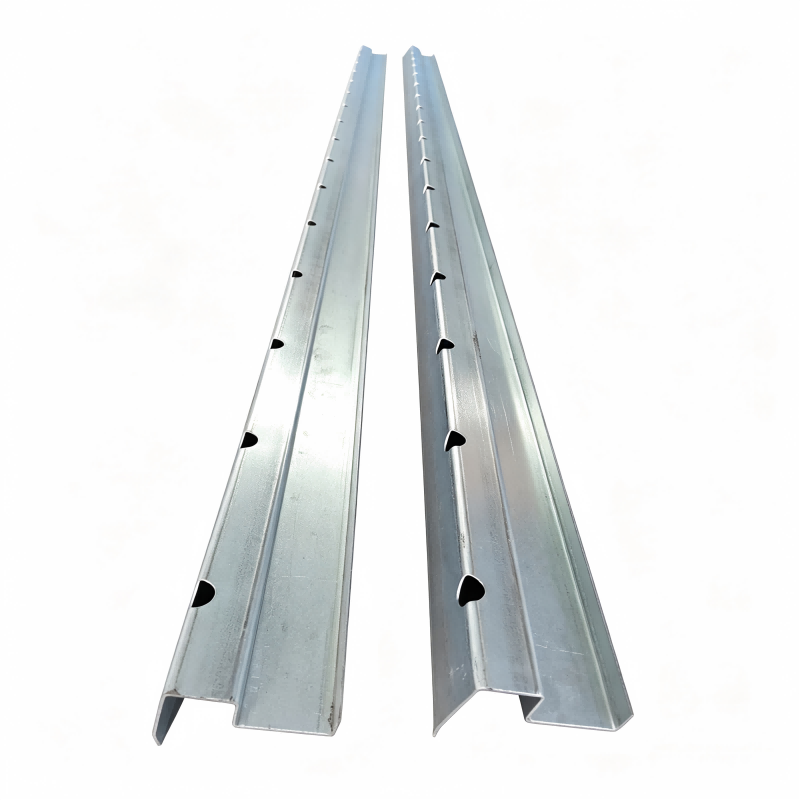

2 Profiles	Door guide rail / track profile
3 Material	1.0mm galvanized steel, 350MPa
4 Uncoiler	1.5Ton powered, max 300mm, ID 400580mm, max OD 1600mm, 3KW drive motor with braking resistor, floor limit switch
5 Pre-Leveling	5-roll (3 over 2), width adjustable
6 Pre-Shear	Hydraulic, manual control, cuts head/tail only
7 Pre-Punching	2 stations (8×22mm slots), Cr12 dies, scrap collection box
8 Forming Passes	18 stations
9 Anti-Twist Device	Adjustment unit to prevent profile warping
10 Roller Material	45# steel, hard chrome coated (mirror finish)
11 Shaft Diameter	Φ75mm
12 Main Motor	11KW VFD (closed-loop control)
13 Max Speed	15 m/min

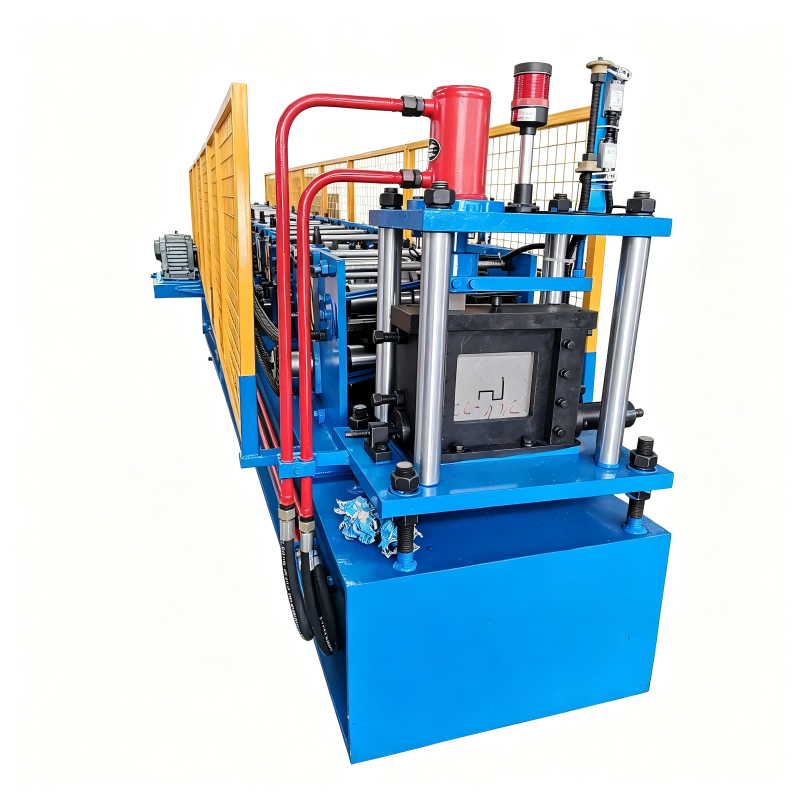

14 Cutting	Hydraulic post cut (stop-to-cut, with scrap), Cr12MoV blades, 7.5KW hydraulic station
15 Tolerance	≤ ±1 mm
16 Control	Siemens PLC + touch screen, Schneider inverter, Omron encoder, closedloop control, 24V
17 Safety	Push-pull mesh cover + blade guard
18 Product Rack	Unpowered, 6m length
19 Voltage	Customizable (380V/50Hz or 480V/60Hz)
20 Warranty	12 months (mechanical parts)

The Working Process of Roof Panel Roll Forming Machine

This series of roof panel roll forming machine wll go through the following working procedures: Coil Charging Car (optional)-Decoiler (passive/auto)- Front Shear(optiona)-Feeding and Guiding Table - Filming Covering (optiona)-Roll FormingSystem-Post-Cutting to length (Hydraulic/Motor)- Output Manual Supporter/Stackmaster(optional)

From Consultation to Delivery Standardized Workflow

01

Design Process

140+ Patents
02

Machining

145CNC Machines
03

Assembly

Craftsman Assembly
04

Commissioning

CE Standard
05

Trial Run

Practical Trial Production
06

Inspection

20-Step Quality Inspectic
07

Logistics

100+Countries
08

Customer Acceptance

On-Site Engineer Support
09

After-sales Service

24/7 Support

Core components are made in-house

This series of the profile is designed to be economical wall cladding for residential, industrial, and commercial projects.

Frame

Adopt high-strength H-beam from large standard steel mills.
Use 100% new material, no recycled or second-hand steel.
With stress relief treatment to avoid deformation during long-term use.
Surface painted with anti-corrosion and anti-rust coating for longer service life. Stable structure, low vibration, ensuring machine runs smoothly and safely.
Shaft

Made of high-quality 45# solid steel.
Processed by precision CNC machining for high accuracy.
High strength, not easy to bend or break.
Ensures stable running and long service life of the whole machine.
Rollers

Made of forged material with better toughness and strength.
Treated with professional heat treatment to improve hardness and wear resistance. Machined with high precision for stable forming effect.
Wear-resistant, long service life, low maintenance cost.
Side Plate

Made of high-quality steel plate with high strength.
Processed by advanced cutting and drilling equipment.
Precision machining ensures good matching and stable assembly.
Stable structure, strong load-bearing capacity.
Column

Adopt shot blasting derusting before painting.
High anti-corrosion and anti-rust performance.
Stable structure, strong durability.
Ensures the stability and safety of the whole equipment.
Shaft Sleeve

Precision CNC machining for high matching accuracy.
Good wear resistance and stable performance.
Reduces noise and extends the service life of transmission parts.
