OnePiece Shutter Roll Forming Machine | YX15.5-77.5-704 0.4-0.6mm

Key Features

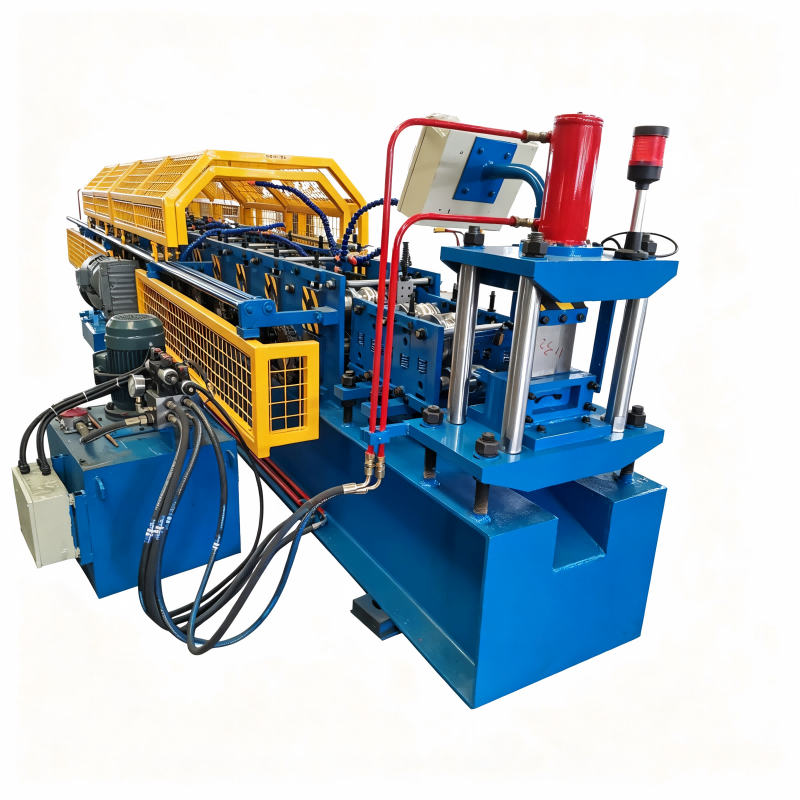

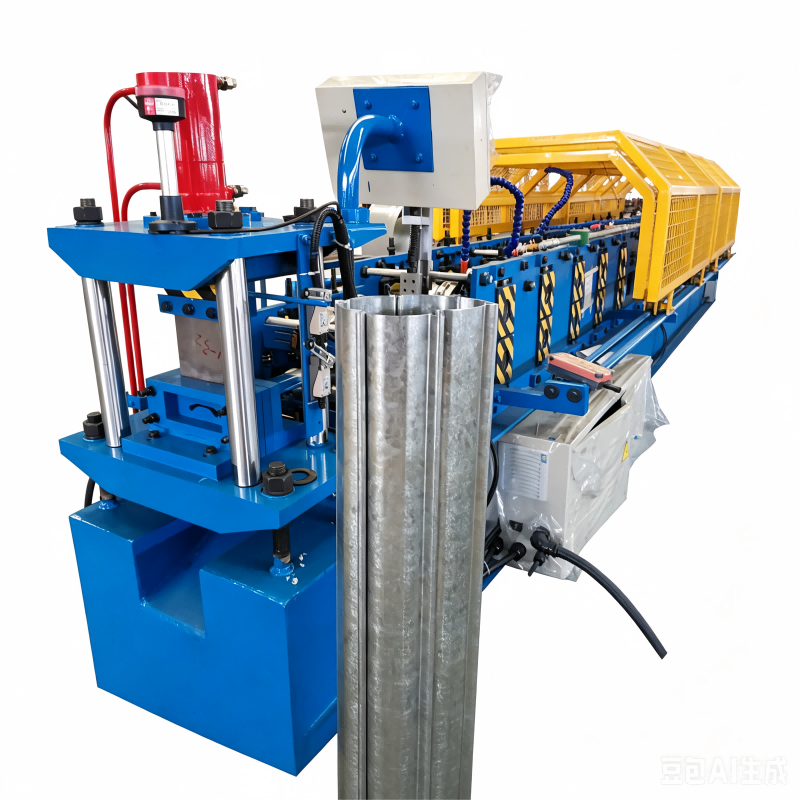

Integrated onepiece single layer shutter roll forming machine with 5Ton wide hydraulic uncoiler, 24 stations, inline slitting, edge seaming and scrap wrapping system.

0.4–0.6mm Color-Coated Steel (350MPa Yield Strength)
Effective Width: 704 ± 3 mm, Standard Feeding Width 914 mm
5Ton Hydraulic Wide Coil Uncoiler, Max Coil Width 1250 mm
24-Station Precision Forming with Mixed Φ75/95 mm Shafts
Bilateral Inline Slitting + Automatic Scrap Wrapping on Both Sides
Adjustable Independent Edge Seaming Device
Special Anti-Twist Finger Rollers for Flat Straight Panels
11KW TECO VFD Main Motor, Max Stable Speed 15 m/min
Hydraulic Post Cut-off, Cr12MoV Wear-resistant Blades
Siemens PLC, Cutting Tolerance ≤ ±2 mm

Key Parameters

Machine Type: YX15.577.5704 OnePiece Shutter Roll Forming Machine

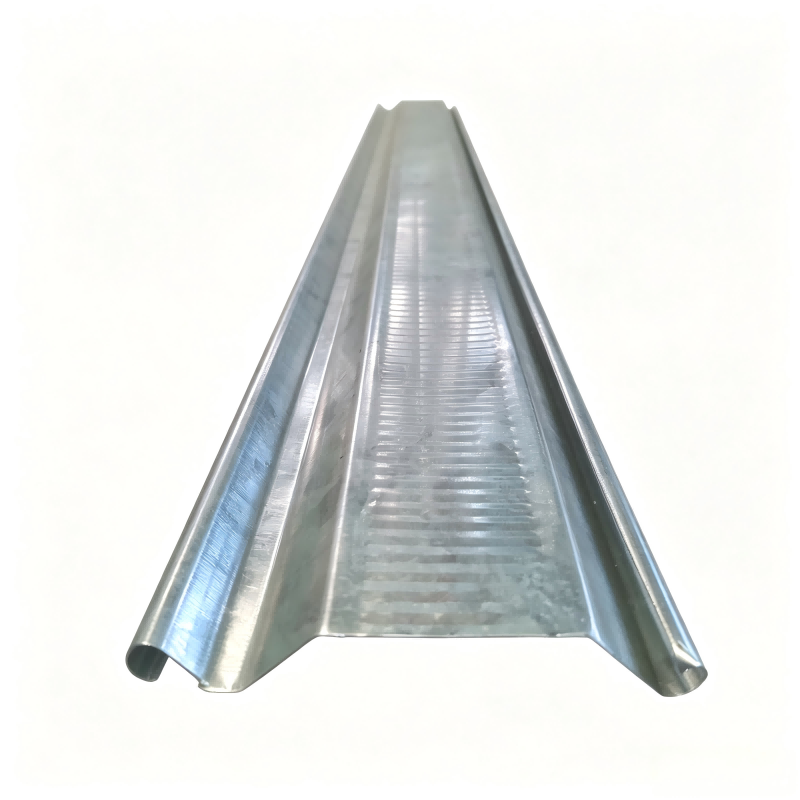

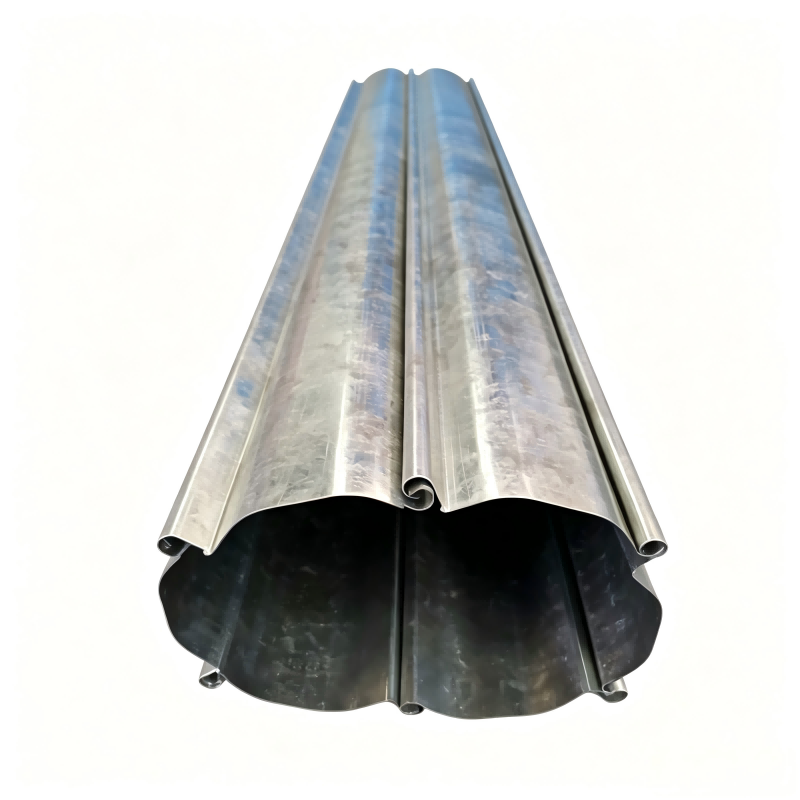

Target Profile: Onepiece shutter door panel
Material: 0.4–0.6mm color-coated steel, 350MPa
Size Spec: Effective width 704 ± 3 mm, feeding width 914 mm
Uncoiler: 5Ton hydraulic wide type, max 1250 mm width, ID 508 ± 30 mm
Forming Passes: 24 stations
Main Drive: 11KW TECO VFD motor
Max Running Speed: 15 m/min
Cutting Tolerance: ≤ ± 2 mm
Control System: Siemens PLC + Touch Screen

Features and Advantages of OnePiece Shutter Roll Forming Machine

This integrated line produces YX15.5-77.5-704 one-piece shutter panels from 0.4-0.6mm 350MPa color-coated steel for commercial storefronts and garages. It adopts a 5Ton wide hydraulic uncoiler matching standard 914 mm coils, plus hydraulic pre-shear for head/tail cutting only. 24 forming stations use a new stand frame and compound thick shafts for stable shaping. Bilateral inline slitting with scrap wrapping keeps the workshop tidy, adjustable edge seaming optimizes edge finish, and anti-twist finger rollers eliminate panel warpage. Hydraulic post cut-off produces clean edges, and Siemens PLC maintains ±2 mm cutting length tolerance with full safety mesh cover.

Main Parameters：OnePiece Shutter Roll Forming Machine
1 Machine Type	YX15.577.5704 OnePiece Shutter Roll Forming Machine
2 Profiles	Onepiece shutter door panel
3 Material	0.4 – 0.6mm colorcoated steel, 350MPa
4 Effective Width	704±3mm
5 Feeding Width	~914mm
6 Uncoiler	5Ton hydraulic, max 1250mm, ID 508±30mm, 3KW pump + 3KW drive
7 Forming Passes	24 stations
8 Frame Type	New stand frame design
9 Roller Material	45# steel, hard chrome coated
10 Shaft Diameter	Φ75/95mm
11 Main Motor	11KW TECO VFD
12 Max Speed	15 m/min
13 Pre-shear	Hydraulic, manual control, cuts head/tail only
14 Slitting	Inline slitting both sides + scrap wrap units (driven by main motor)
15 Edge Seaming	Independent edge seaming device (adjusts to width variation)
16 Anti-twist	Finger rollers to straighten panels after forming

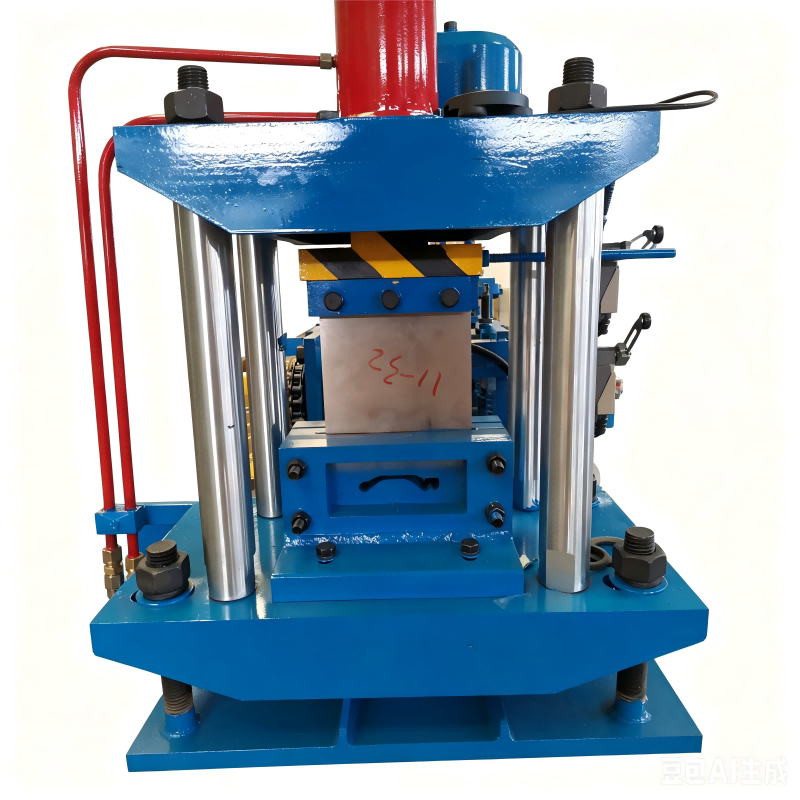

17 Cutting	Hydraulic post cut-off (stop-to-cut, no scrap), Cr12MoV blades, 5.5KW hydraulic station
18 Tolerance	≤ ±2 mm
19 Warranty	12 months (mechanical parts)
20 Control	Siemens PLC + touch screen, Schneider inverter, Omron encoder, 24V
21 Safety	Full mesh cover
22 Product Rack	Unpowered, 3 units
23 Voltage	Customizable (380V/50Hz or 480V/60Hz)
24 Warranty	12 months (mechanical parts)
