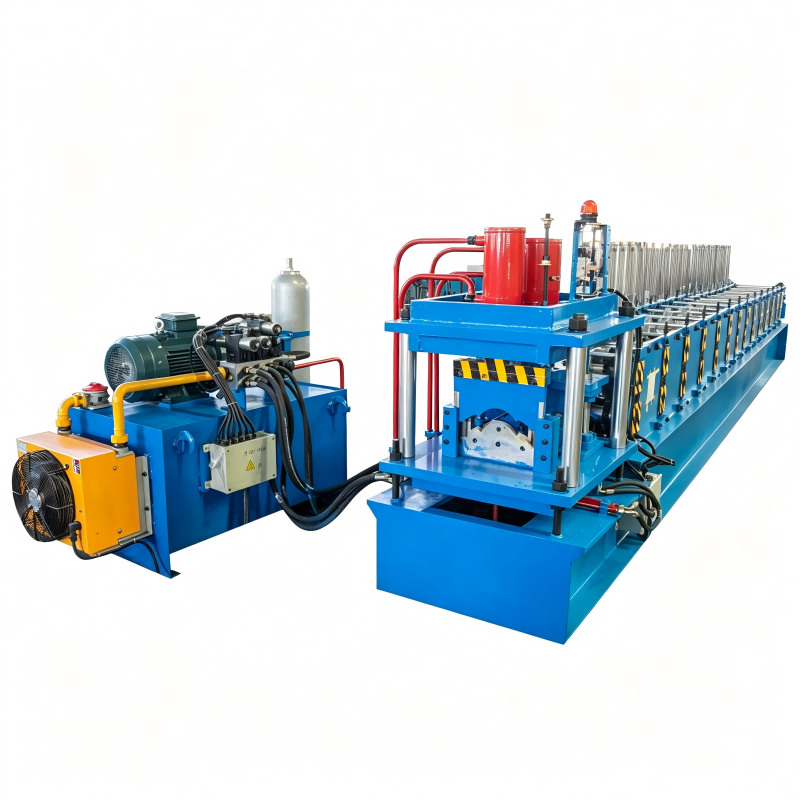

This roll forming machine produces YX110-260 ridge cap / roof ridge tile profiles from 0.4-0.55mm 350MPa colorcoated steel. The 3Ton hydraulic uncoiler with passive drive feeds coils smoothly. Manual pre-shear with tail reminder cuts head/tail only. 14 forming stations with hard chrome rollers (Φ75mm shafts) ensure consistent ridge cap profiles. Film applicator with rubber rollers protects sheet surfaces. Hydraulic post cutting (Cr12 blades) delivers clean, no-scrap cuts. Siemens PLC with touch screen holds cut length to ±2mm. Full mesh safety cover included.

Main Parameters：Ridge Cap Roll Forming Machine
1 Machine Type	YX110-260 Ridge Cap Roll Forming Machine

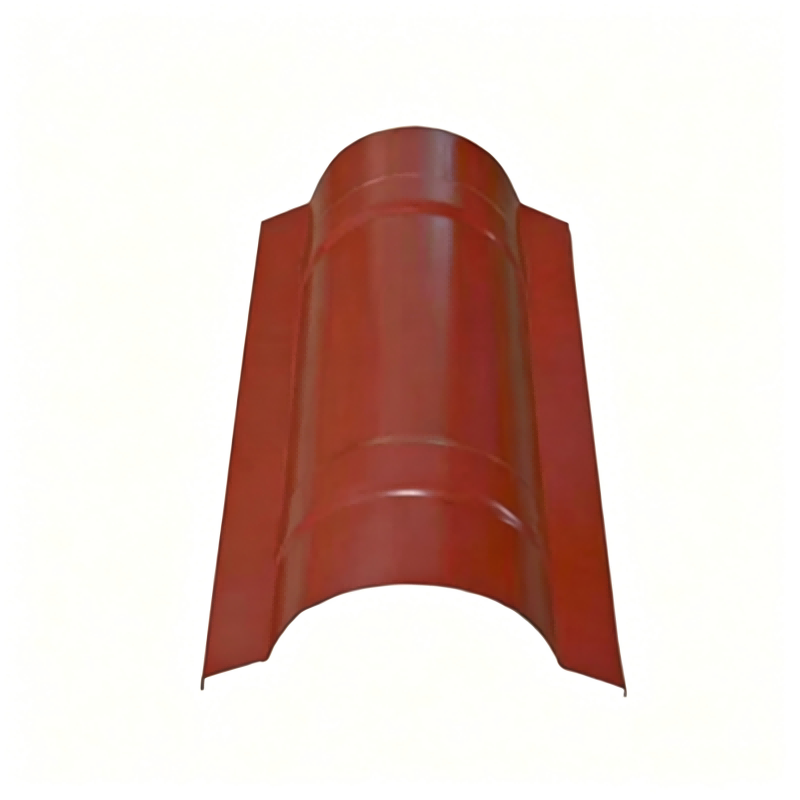

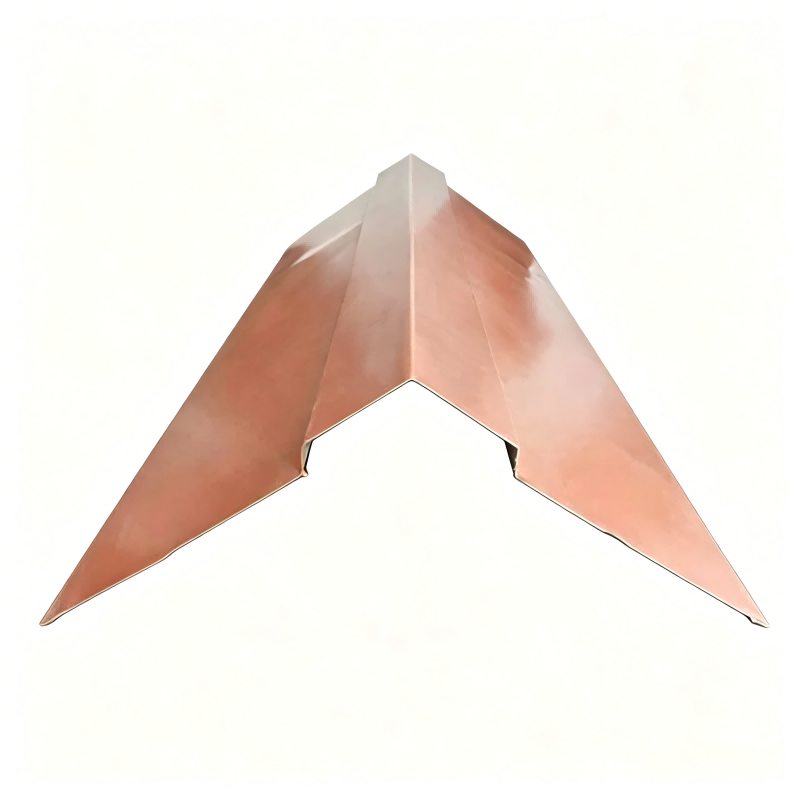

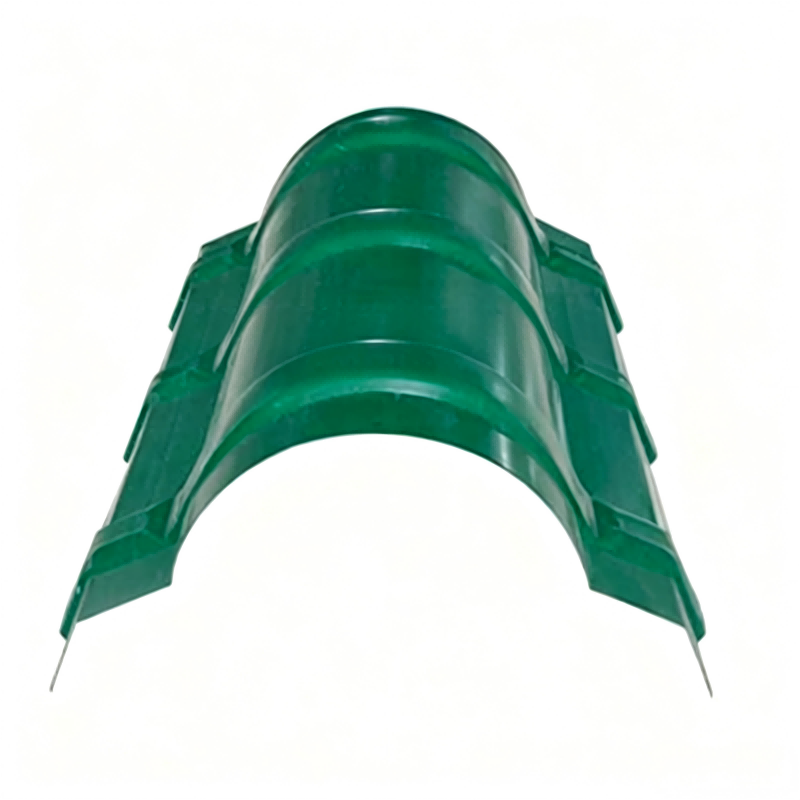

2 Profile	Ridge cap / roof ridge tile
3 Material	0.4 – 0.55mm colorcoated steel, 350MPa
4 Effective Width	260±5mm
5 Feeding Width	362mm
6 Uncoiler	3Ton hydraulic, max 600mm, ID 451530mm, max OD 1500mm, 1.5KW pump, passive drive
7 Forming Passes	14 stations
8 Roller Material	45# steel, hard chrome coated
9 Shaft Diameter	Φ75mm
10 Main Motor	5.5KW VFD
11 Max Speed	15 m/min
12 Pre-shear	Manual, unpowered, tail reminder, cuts head/tail only (max 0.6mm)
13 Film Applicator	Unpowered, rubber rollers, knurled steel roller
14 Cutting	Hydraulic post cut (stop-to-cut, no scrap), Cr12 blades, 3KW hydraulic station
15 Tolerance	≤ ±2 mm
16 Control	Siemens PLC + touch screen, Schneider inverter, Omron encoder, 24V
17 Safety	Pushpull mesh cover + blade safety guard
18 Product Rack	Unpowered, 3 units
19 Voltage	Customizable (380V/50Hz or 480V/60Hz)
20 Warranty	12 months (mechanical parts)

The Working Process of Roof Panel Roll Forming Machine

This series of roof panel roll forming machine wll go through the following working procedures: Coil Charging Car (optional)-Decoiler (passive/auto)- Front Shear(optiona)-Feeding and Guiding Table - Filming Covering (optiona)-Roll FormingSystem-Post-Cutting to length (Hydraulic/Motor)- Output Manual Supporter/Stackmaster(optional)
