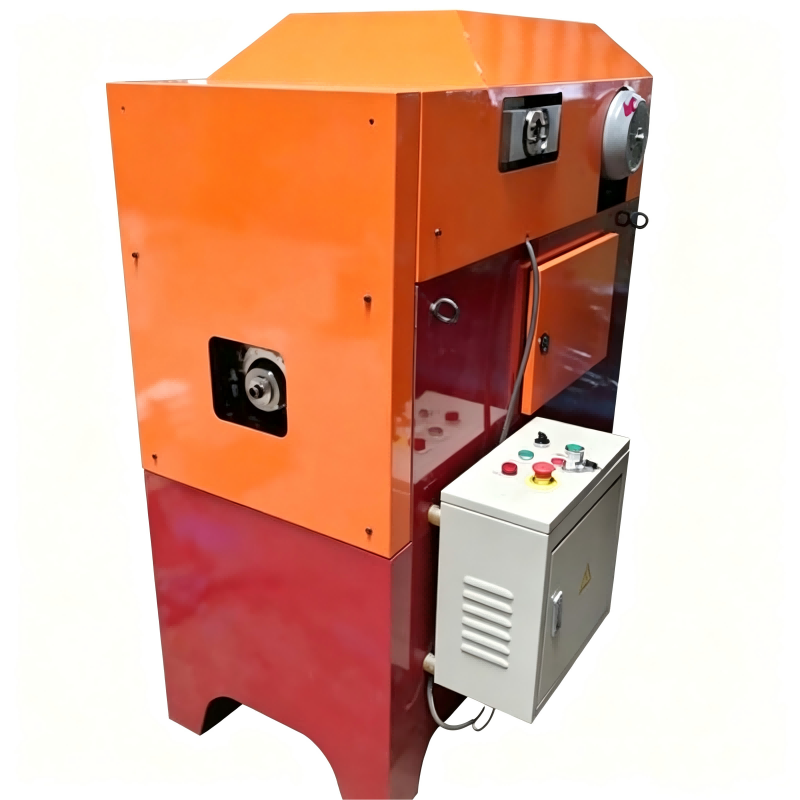

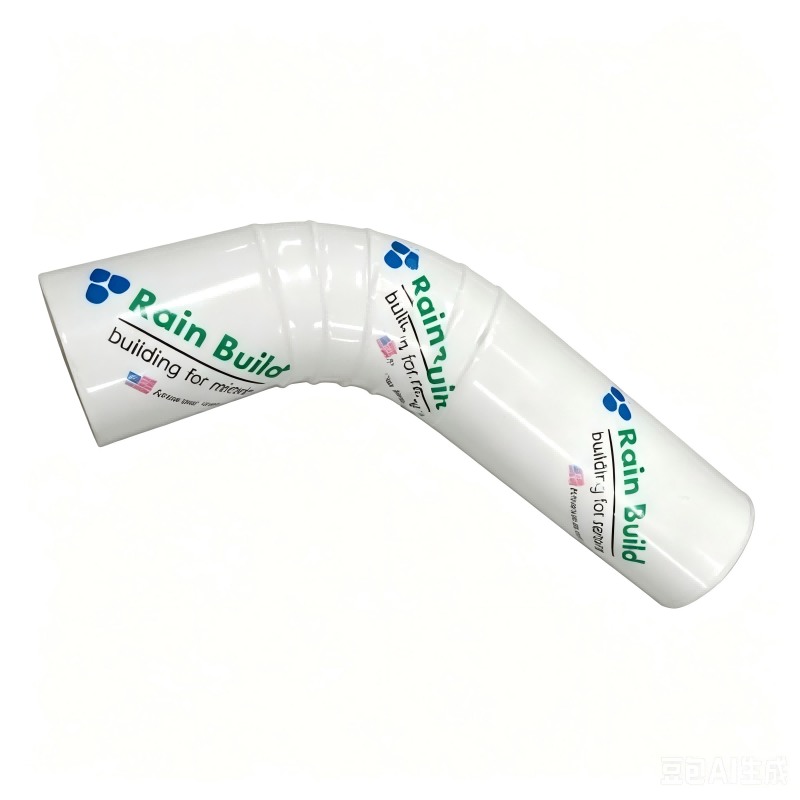

This Type Ⅲ-1 hydraulic auxiliary unit is dedicated to D91 round downspout production. The seaming/locking process is completed on the main downspout line beforehand; this machine handles subsequent bending, S-shape forming, and pipe end swaging. It produces 90°/135° standard elbows and custom S-shaped fittings – swaged ends ensure tight, leak-free joints. Independent start/stop buttons for bending and swaging are mounted separately for single-operator convenience. Compact, easy-to-use standalone unit, ideal for complete D91 downspout lines and on-site fabrication workshops.

Main Parameters：Round Downspout Elbow Forming Machine
1 Machine Type	Ⅲ-1 Round Downspout Elbow Forming Machine
2 Applicable Profile	D91 round downspout (0.4–0.7mm steel/aluminum)
3 Bending Angles	90°, 135°
4 Additional Function	S-shape special fitting forming
5 Swaging	Pipe end swaging for tight connections (seaming/locking completed by main forming line beforehand)
6 Drive Mode	Hydraulic, manual operation
7 Control System	Independent start/stop buttons at bending & swaging stations
8 Design	Standalone compact unit
9 Warranty	12 months (mechanical parts)
